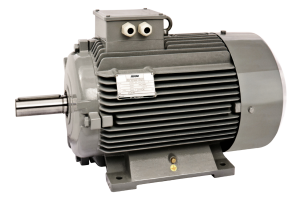

Energy-efficient induction motors built for dependable industrial performance. Designed for smooth operation, low vibration, and long operational life in demanding environments.
Salient Features
- Sturdy and robust construction for dependable operation
- Designed for extended service life with reliable performance
- Operates efficiently under wide voltage conditions
- High operational efficiency and consistent output
- Smooth and quality surface finish for better durability
- Suitable for ambient temperatures up to 45°C
- Low vibration and reduced noise levels for stable running
Application
- Air compressors
- Pumping systems
- Pharmaceutical machinery
- Cranes and hoisting equipment
- Textile machinery
- Geared motor systems
- Chemical processing equipment
- Material handling machinery
| PRODUCT RANGE | |
|---|---|
| Efficiency Class | IE2 |
| Power Range (KW/HP) | 0.37/0.5 to 22.0/30.0 |
| Version | 415 V, 50Hz, AC Supply |
| Pole | 2, 4, 6, 8 |
| Frame | 71F to 225F |
| Enclosures | Totally Enclosed Fan Cooled |
| Insulation Class | F |
| Duty | S1 |
| Degree Of Protection | IP55 |
| Ambient Temperature Max. | 45°C |
| Hardware | Carbon Steel |
| Mounting | B3, B5, B14, B3B5, B3B14 |
| Types Of Motor | Standard, Brake Motor, Extended Shaft, Cooling Tower |
| MATERIAL OF CONSTRUCTION | |
|---|---|
| Component | Material |
| Motor Body | Cast Iron / Aluminum (up to 100F) |
| Rotor Shaft | EN8 |
| End Shield | Cast Iron / Aluminum (up to 100F) |
| Front/Flange/Face Shield | Cast Iron / Aluminum (up to 100F) |
| Bearing | 2Z Pre Lubricated Ball Bearing |
| Shaft Key | EN8 |
| Terminal Box | Cast Iron / Aluminum |
| Cooling Fan | PVC |
| Fan Cover | Mild Steel |
