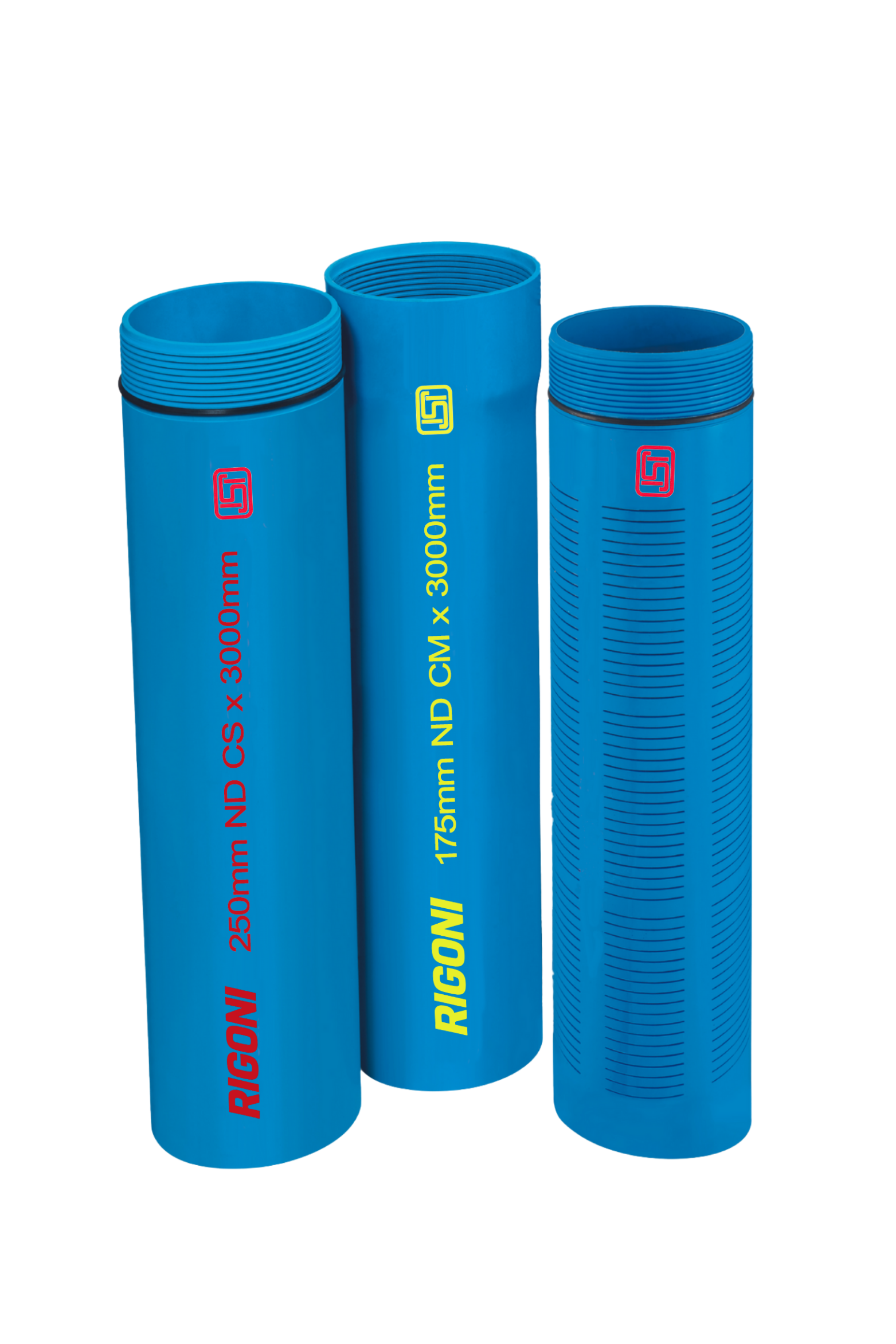

Durable uPVC casing pipes for borewell lining and aquifer protection. Available in plain and screened variants to ensure efficient water flow and borewell stability.
Salient Features
- Manufactured from special-grade uPVC compound for enhanced strength and durability
- Excellent resistance to corrosion and aggressive soil conditions
- Equipped with precision threaded joints for easy assembly and secure installation
- Lightweight construction simplifies handling, transportation, and installation
- Non-toxic material that does not affect the taste, odor, or color of water and remains hygienic for groundwater use
- Non-conductive property prevents electrochemical reactions with groundwater, reducing the chances of encrustation
- Resistant to rust, weathering, and chemical effects, ensuring long service life
- Provides an economical and cost-effective alternative compared to conventional casing materials
Application
- Tube wells and borewell installations
- Rainwater harvesting systems
- Water disposal and injection wells
- Agricultural vertical drainage wells
- Domestic, industrial, and mining water wells
| SPECIFICATION TABLE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NOMINAL DIA | MEAN OUTER DIAMETER (MM) | WALL THICKNESS (MM) | |||||||
| CS Type | CM Type | CD Type | |||||||
| MM | Inch | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 40 | 1.5 | 48.0 | 48.2 | – | – | 3.5 | 4.0 | – | – |
| 50 | 2.0 | 60.0 | 60.2 | – | – | 4.0 | 4.6 | – | – |
| 80 | 3.0 | 88.0 | 88.3 | – | – | 4.0 | 4.6 | – | – |
| 100 | 4.0 | 113.0 | 113.3 | 4.6 | 5.2 | 5.0 | 5.7 | 7.0 | 7.9 |
| 115 | 4.5 | 125.0 | 125.3 | – | – | 5.0 | 5.7 | 7.5 | 8.5 |
| 125 | 5.0 | 140.0 | 140.4 | – | – | 6.5 | 7.3 | 8.0 | 9.0 |
| 150 | 6.0 | 165.0 | 165.4 | 5.7 | 6.5 | 7.5 | 8.5 | 9.5 | 10.7 |
| 175 | 7.0 | 200.0 | 200.5 | 7.0 | 7.8 | 8.8 | 9.8 | 11.8 | 13.6 |
| 200 | 8.0 | 225.0 | 225.5 | 7.6 | 8.8 | 10.0 | 11.2 | 13.0 | 14.8 |
| 250 | 10.0 | 280.0 | 280.5 | 9.6 | 11.0 | 12.5 | 14.0 | 16.0 | 17.6 |
| 300 | 12.0 | 330.0 | 330.6 | 11.2 | 13.3 | 14.5 | 16.2 | 19.0 | 21.0 |
