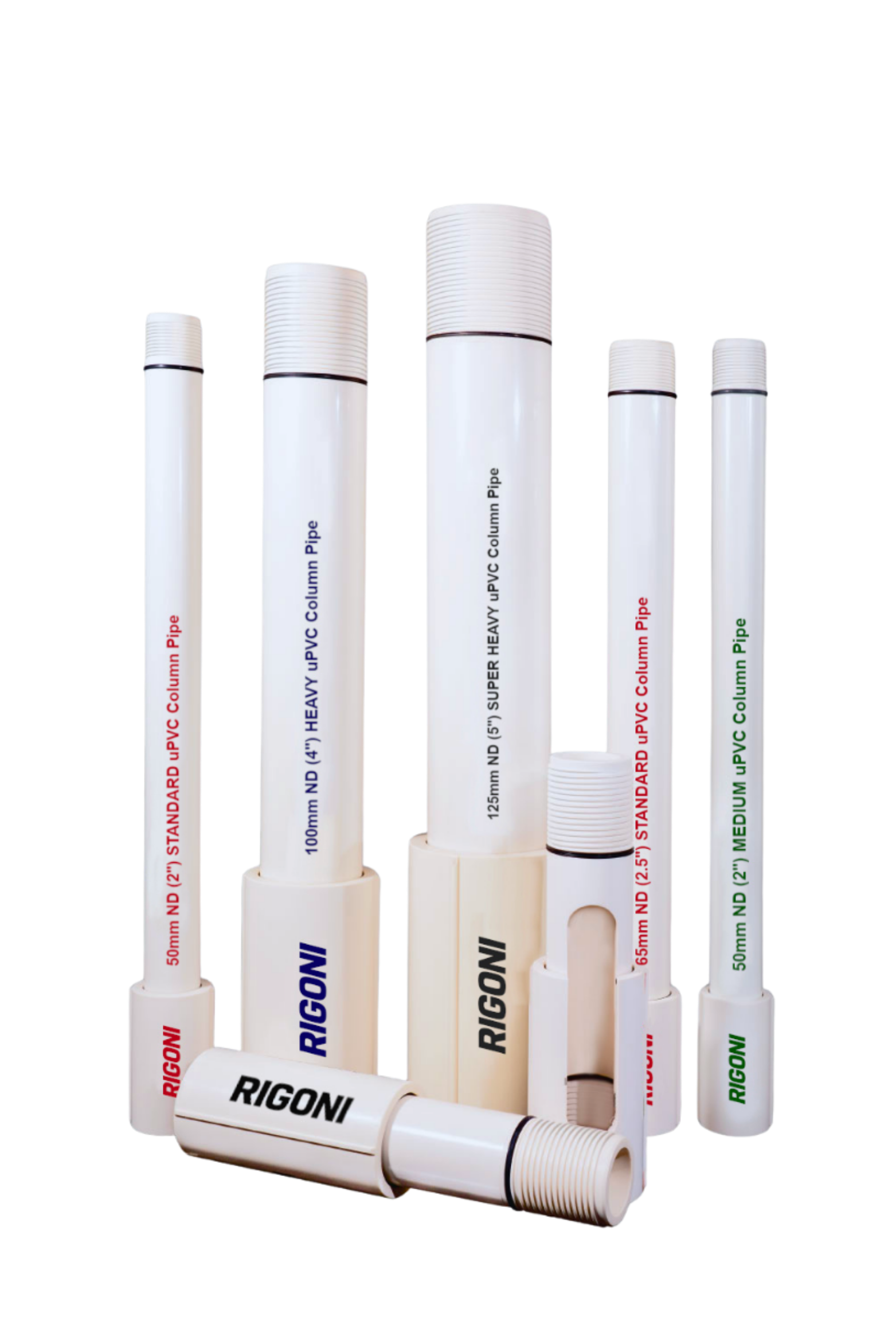

High-strength uPVC pipes designed for submersible pump installations. Lightweight, corrosion-resistant, and capable of withstanding high pressure and long-term underground use.
Salient Features
- Square thread design with matching couplers provides high tensile load carrying capacity
- Smooth inner surface minimizes friction, allowing improved water flow and higher discharge
- Special rubber sealing rings with threaded joints prevent leakage and help absorb motor vibrations
- Optimized thick–thin wall structure enhances pipe strength and durability
- Excellent resistance to acidic and alkaline water, ensuring longer service life in borewell conditions
- Standard length pipes with lightweight construction, making handling and installation easier compared to GI pipes
Application
- Efficient alternative to MS, GI, HDPE, and SS column pipes
- Water lifting in submersible pump installations
- Jet pump systems for irrigation and agriculture
- Domestic and industrial water supply
- Mining and borewell water rising applications
| SPECIFICATION OF RIGONI uPVC COLUMN / RISER PIPE | |||||||
|---|---|---|---|---|---|---|---|
| Nominal Size (Inch) | Nominal Dia (MM) | Outer Diameter (MM) | Safe Allowable Hydrostatic Pressure (kgf/cm²) | ||||
| Min. | Max. | Medium | Standard | Heavy | Super Heavy | ||
| 1" | 25 | 32.80 | 33.20 | 19.0 | 30.0 | – | – |
| 1.25" | 32 | 41.80 | 42.20 | 20.0 | 26.0 | 35.0 | – |
| 1.5" | 40 | 47.80 | 48.20 | 20.0 | 26.0 | 35.0 | 40.0 |
| 2" | 50 | 59.80 | 60.20 | 15.0 | 20.0 | 27.0 | 35.0 |
| 2.5" | 65 | 74.80 | 75.20 | 12.0 | 16.0 | 26.0 | 35.0 |
| 3" | 80 | 87.80 | 88.20 | 11.0 | 16.0 | 26.0 | 35.0 |
| 4" | 100 | 112.90 | 113.30 | 10.0 | 16.0 | 26.0 | 35.0 |
| 5" | 125 | 139.80 | 140.20 | – | 16.0 | 25.0 | 35.0 |
| 6" | 150 | 165.00 | 165.50 | – | – | 26.0 | 35.0 |
